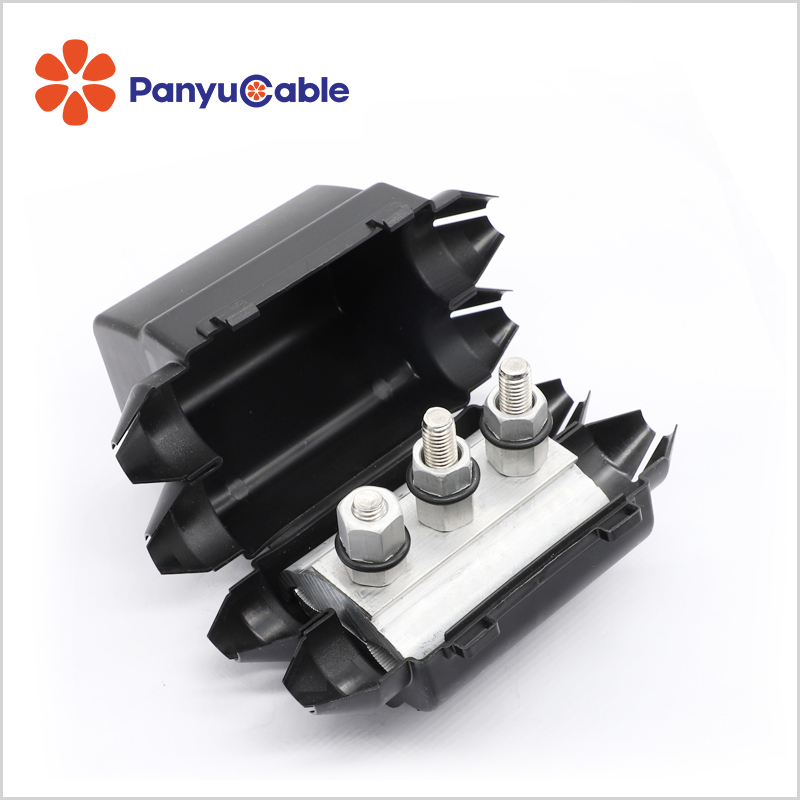

Special-shaped parallel groove cable clamp (including insulation cover)

• Model specifications
  JBL-50/240 (3 digits)

  Structural features:
  1. Use anti-oxidation aluminum alloy materials
  2. Tooth-shaped structure, small contact resistance, reliable connection
  3. The components are connected and will not fall out during installation.
  4. The arc hugs a large area and the wire is not easy to creep.

  Insulation cover performance characteristics
  1. Working voltage: ≥18kV, no breakdown for 1 minute
  2.Ambient temperature: -30°C~90°C
  3. Weather resistance: good performance after 1008 hours of artificial climate aging test.

  Purpose: Suitable for non-load-bearing splices and branches of conductors in overhead power lines, and used in conjunction with the insulation cover to provide super protective insulation.
