Single-phase Two-pole Non-detachable Plug
Model No.:
Suitable for electrical appliances and power sockets with corresponding ports, including machine power supplies, computer hosts, DVRs, chassis, fans, monitors, electronic scales, printers, copiers, projectors, LED devices, etc.
Benefits
Specification

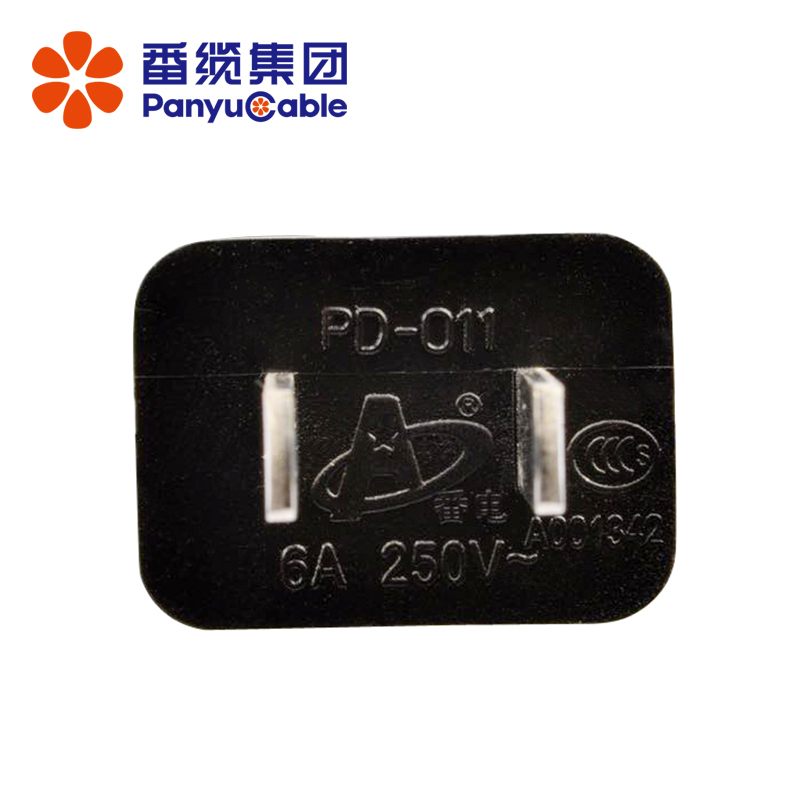

Model Number: PD-011
Rated Current: 2.5A, 6A, 10A
Rated Voltage: 250V
Certification Type: CCC (China)
Product Standards: GB/T 2099.1-2021; GB/T 1002-2021
Wiring Specifications:
2.5A 250V
60227IEC 52 2*0.5mm² (Flat cable)
6A 250V
60227IEC 52 20.75mm² (Flat cable)
60227IEC 53 20.75mm² (Flat cable)
10A 250V
60227IEC 52 20.75mm² (Flat cable)
60227IEC 53 20.75mm² (Flat cable)
60227IEC 53 21.0mm² (Flat cable)
60227IEC 53 20.75mm²
60227IEC 53 2*1.0mm²
Features
Product Features and Advantages
- Made from 100% high-quality oxygen-free copper, the copper wire has a shiny and smooth appearance with low resistivity. The traditional canned process eliminates internal stress, avoiding uneven hardness caused by continuous drawing and annealing. It offers excellent conductivity and high safety performance.
- The plug bracket, rubber materials, and auxiliary materials are sourced from renowned suppliers both domestically and internationally, ensuring stable and reliable performance.
- The product features high performance and complies with international and industry-related standards.
