Water-cooled charging gun
Model No.:
The water-cooled charging gun is a high-power electric vehicle charging device utilizing liquid circulation cooling technology. Coolant (water or specialized cooling oil) circulates through the cable and gun head to efficiently dissipate heat generated during charging, supporting currents of up to 500A–800A and compatible with 600kW ultra-fast charging systems. This enables rapid “1 kilometer per second” energy replenishment. Its core value lies in overcoming thermal limitations of high-power charging while enhancing efficiency and safety.
Benefits
Specification
| Specifications | |
| Rated working current | 400A~600A |
| Rated working voltage | 750V/1000VDC |
| Insulation resistance | ≥100MΩ（ DC1000V） |
| Dielectric strength | 3500V AC |
| Leakage current | ≤10mA |
| Terminal temperature rise | ＜50K |
| Mechanical life | ＞10000times |
| Insert and pull-out force | ＜140N |
| Cable fixation pull-out force | ＞250N |
| Operating ambient temperature | -40°C-+55°C |
| Plastic shell flame retardant rating | UL94 V-0 |
| Cable flame retardant test | Compliant with the provisions of GB/T 18380.12-2008 |
| Protection rating | IP67 |
| Product design basis | GB/T 20234.1-2023 GB/T 20234.3-2023 |
| Electronic lock – Pulse type | ||
| Rated voltage | 12V± 10% DC | |
| Rated voltage | 2A | |
| Power | 24W | |
| Action time | ≤200ms | |
| Service life | ＞60000 | |

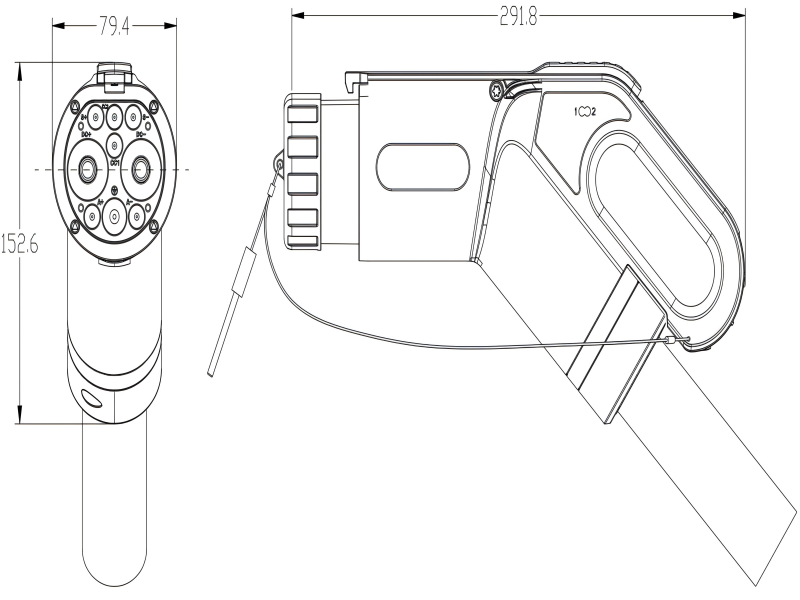

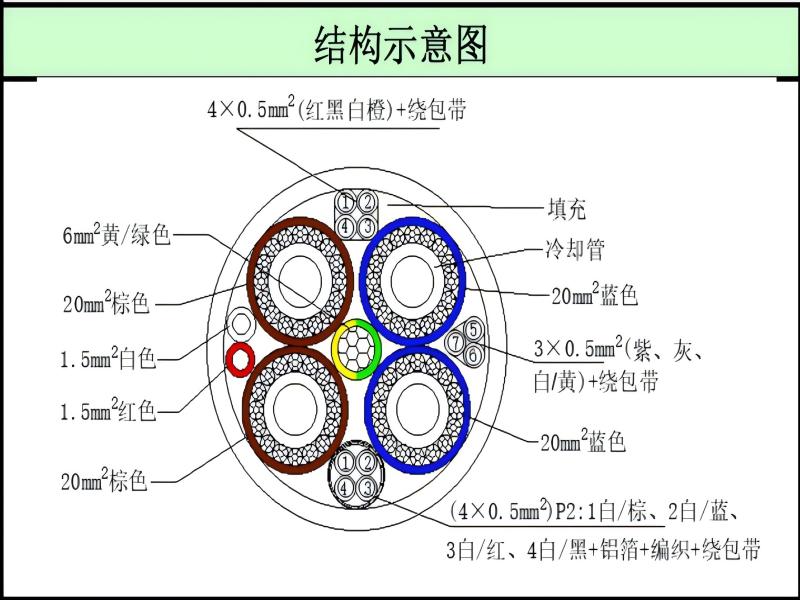

| Cable parameters | |
| Cable specifications | 4×20 mm² |
| Outer diameter of the inlet and outlet pipes | 7/5 |
| Outer diameter of the cable | 29.0±1 |
| Length | 3~5Meter |
| Reference standard | CQC1147-2022 |
Features
Product Features and Advantages
① Performance Advantages & Technical Features
Efficient Heat Dissipation & High-Current Support:
A closed-loop liquid cooling system (physically isolated coolant and current circuits ) rapidly conducts heat away. Cables with a diameter of only 30mm stably deliver 600A–650A continuous current, achieving over 600kW charging power—3–5x more efficient than traditional air-cooled guns. Enables 20%–80% charge replenishment in under 10 minutes.
Multi-layer Safety Protections:
IP67-rated housing for waterproof/dustproof performance; integrated temperature, coolant leakage, and orientation sensors with smart MCU for real-time anomaly detection and overcurrent/overvoltage/short-circuit protection; complete electrical isolation of coolant eliminates short-circuit fire risks.
Lightweight & Intelligent Design:
Liquid cooling reduces cable weight by over 50% for easier handling; supports CAN/Bluetooth/NFC communication for remote charging monitoring, fault diagnosis, and full lifecycle management.
② Application Scenarios
Urban Public Ultra-Fast Charging Stations: Covers 1–2 km radius charging demands, compatible with Tesla, XPeng, and other mainstream EVs, alleviating congestion in high-density areas.
Highway Service Areas: Enables rapid recharging for long-distance EVs, reducing stops to under 10 minutes and improving travel efficiency.
Commercial Fleet Hubs: Supports high-frequency, high-current charging for logistics centers and taxi fleets (e.g., Huolala delivery vehicles), minimizing operational downtime.
Future-Ready Compatibility: Adaptable for hydrogen/hybrid vehicles; 1000V wide-voltage range supports 800V high-voltage platforms for ultra-fast charging network expansion.
